| Quantity: | |
|---|---|
Product Description

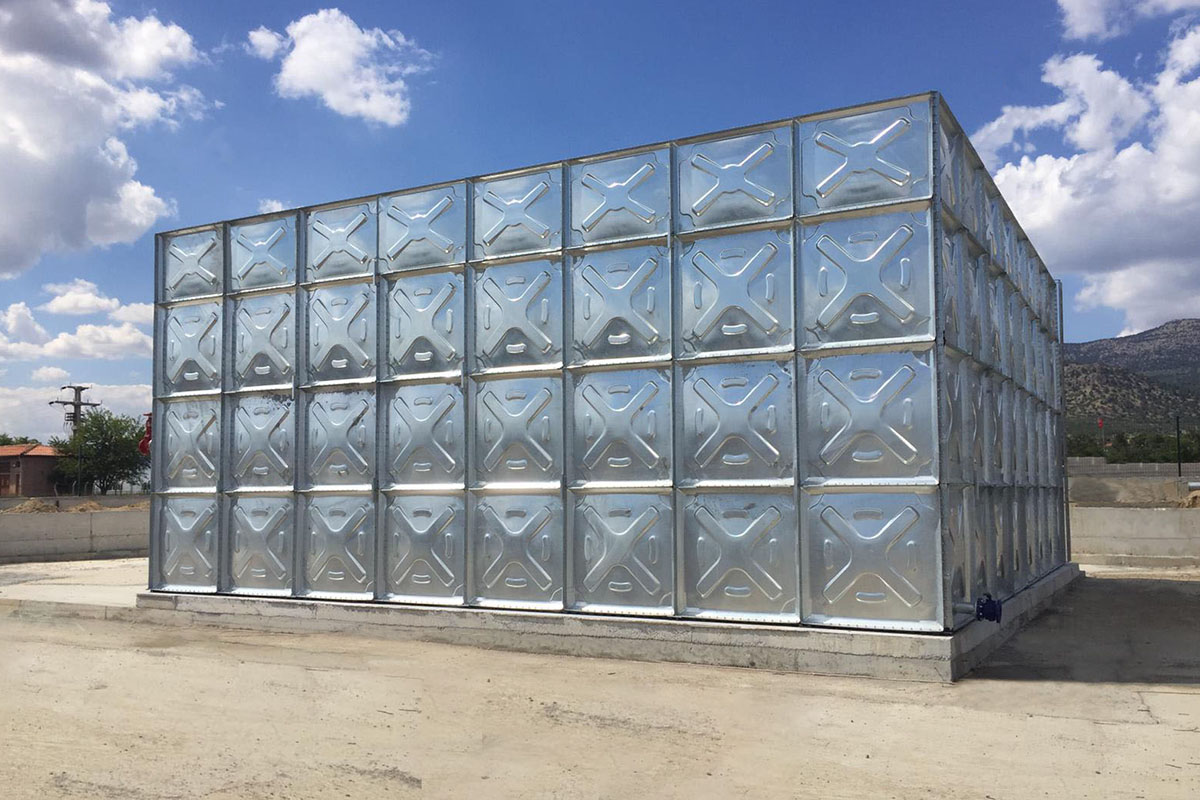

Galvanized water tank is a kind of water storage equipment that uses the galvanizing process to coat the zinc layer on the steel plate, which can effectively prevent the steel from rusting and corrosion, and has the characteristics of durability and long-lasting. It is widely used in fire protection and commercial fields, providing a reliable water storage solution.
| Materials | Galvanized steel sheet |
| Water tank capacity | 1-1000CBM |
| Stainless steel panel size | 1.0m * 1.0m，1.0m * 0.5m，0.5m * 0.5m |
| Stainless steel panel thickness | Wall panel thickness: 4mm, 6mm, 7.5mm, 8mm, 10mm, etc. |
| Accessories | Water inlets and outlets, bolts, sealing strips, tie rods, flange connections, ladders, base channels (C channels), etc. |
-Features
1. Never rust
Adopt high-quality GI technology, ultra-thick GI layer, excellent anti-rust performance.
2. Never leaked
Unique structure and full machine welding operation, excellent strength.
3. Free combination
The mode and capacity can be customized according to the actual use environment, without requirements, especially suitable for upgrading projects.
4. Reasonable structure
The unique plate design and stamping processing, reasonable internal support parts and high-strength galvanized steel materials give the water tank excellent strength and streamlined appearance.
5. Different types
There are GI steel plates pressed by different molds, and 1.22x 1.22 meters large size panels to meet different needs
--Applications
Agriculture: Galvanized water tanks are used to store water for livestock and irrigation systems.
Fire Protection: Galvanized water tanks can serve as a source of water in the event of wildfires.
Residential: Galvanized water tanks can provide a reliable water supply for up to three days.
Wastewater Management: Galvanized tanks can store and treat wastewater before discharging it into the environment.
Rainwater Collection: Galvanized tanks can be used to collect rainwater.
Industrial: Galvanized tanks can store industrial liquids, oils, and gases.
Mining: Galvanized tanks are used in mining.
Construction: Galvanized water tanks can be used for temporary water storage during construction.
Water tank structure
--Panel size and weight
1. Material
Segmented panel tanks shall consist of 4’ x 4’ or 1m x 1m, 1m x 0.5m
Panels manufactured from 1.5mm to 4.0mm thickness as per requirement.
2. Flanges
Segmented panels shall be pressed with double flanges at 45 and 90 degrees to the four sides of the panel.
3. Reinforcement
All tanks are fitted with angle braces inside to withstand the rigidity of the tank when filled with water. Support Top Panels are supported by top panels and shall be made of stainless steel grade 304 or 316 material as per requirement.
4. Accessories
1. Bolts, Nuts and Washers Stainless steel 304 material.
2. Sealing Material Non-toxic P.V.C Foam Tape shall be applied between joints.
3. Cover Tank cover shall be constructed of 1.2mm to 3.0mm thickness of stainless steel 304 material as per requirement.
4. Ladders and Level Indicators
Inner and outer ladders shall be made of stainless steel grade 304 material.
Factory Showcase
Having years of experience in manufacturing industrial fiberglass products, the senior engineers of KUOBANG FRP will customize industrial FRP product solutions for you. Any Fiberglass product can be customized!
FRP Products: Kuobang FRP focuses on customizing industrial FRP products, including fiberglass grating, fiberglass extruded profiles, fiberglass handrail systems, fiberglass pipes, fiberglass desulfurization tower, fiberglass hydrochloric acid tanks, fiberglass manhole cover, etc.
Application Industries: petrochemical, chemical, water treatment, metallurgy, coal mine, municipal, electric power, water conservancy and other industries.
Product finished product display
Product interior display
Product factory display
FAQ
A: What are your advantages?
Q: We have introduced advanced equipment with the latest technology. In addition to regular size panels, we can also provide 2x1m smc water tank panels for water tanks.
With a large inventory of panels, we can guarantee fast delivery time and more favorable prices.
A: Do you provide installation guidance?
Q: Yes, we can provide installation guide: installation video or our engineers provide installation assistance on site.
A: How long is the delivery time?
Q: For standard water tanks less than 100 cubic meters, it is 3-5 days; for non-standard water tanks and customized water tanks, it takes 15 to 30 days according to the specific requirements of customers.
A: What is the warranty time of your products?
Q: The warranty time of our products is 24 months, which guarantees good after-sales service.
A: In case the water tank is broken, what is the guarantee?
Q: The water tank has a two-year warranty period. Generally speaking, if a failure occurs, our technicians will find out the problem based on customer feedback. If the problem is caused by a quality failure, the parts will be replaced free of charge.
